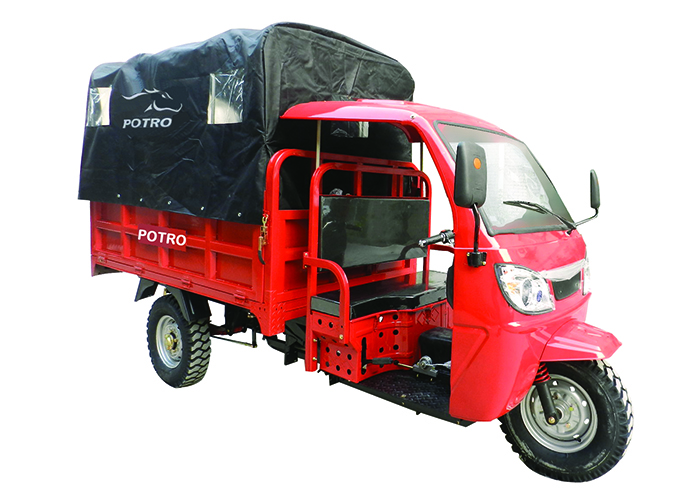

JT300TW-19
Product Details
| ENGINE | |
| Engine Type | CG engine, single cylinder, water-cooled, 4 stroke |
| Bore and Stroke | 72 X 66.2 mm |
| Displacement | 269.5 ml |
| Compression Ratio | 8.7：1 |
| Maximun Power | 12 kw / 6500r / min |
| Maximun Torque | 20.5 N.m / 4500r / min |
| Transmission | Shaft drive |
| Ignition | CDI |
| Starting | Electric & kick starting |
| Clutch | Hand clutch |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Hydraulic damp |
| Rear Suspension | Spring plate |
| Front Brake | Drum brake |
| Rear Brake | Oil brake |
| Front Tire | 6.00-13 |
| Rear Tire | 6.00-13 |
| DIMENSIONS / CARGO BOX SIZE | |
| Height | 2100 mm |
| Width | 1400 mm |
| Length | 3755 mm |
| Cargo Box Size | 1350 X 2200 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
