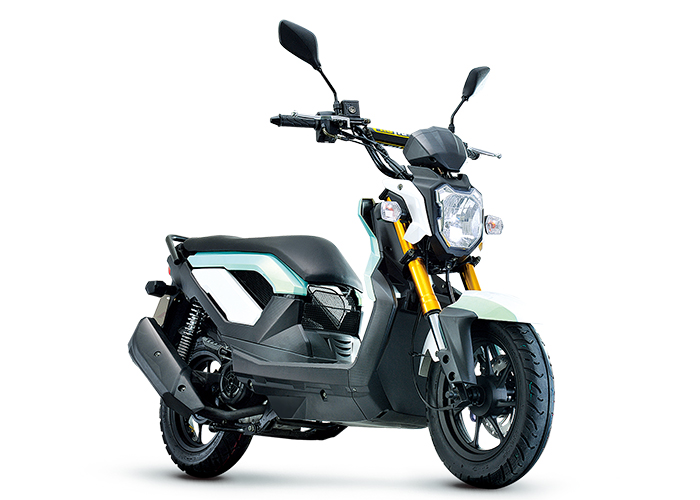

JT125T-5
Product Details
| ENGINE | |
| Engine Type | Single cylinder, forced air cooled, 4 stroke |
| Bore and Stroke | 52.4 x 57.8 mm |
| Displacement | 124.6 ml |
| Compression Ratio | 9.2:1 |
| Maximun Power | 5.2 kw / 7500r / min |
| Maximun Torque | 7.5 N.m / 6000r / min |
| Transmission | V-belt automatic |
| Ignition | CDI |
| Starting | Electric & kick starting |
| Clutch | Automatic clutch |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Telescopic fork |
| Rear Suspension | Single spring shock absorber |
| Front Brake | Single disc |
| Rear Brake | Drum brake |
| Front Tire | 90/90-12 |
| Rear Tire | 3.5-10 |
| DIMENSIONS | |
| Height | 1060 mm |
| Width | 765 mm |
| Length | 1840 mm |
| Wheel Base | 1300 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
