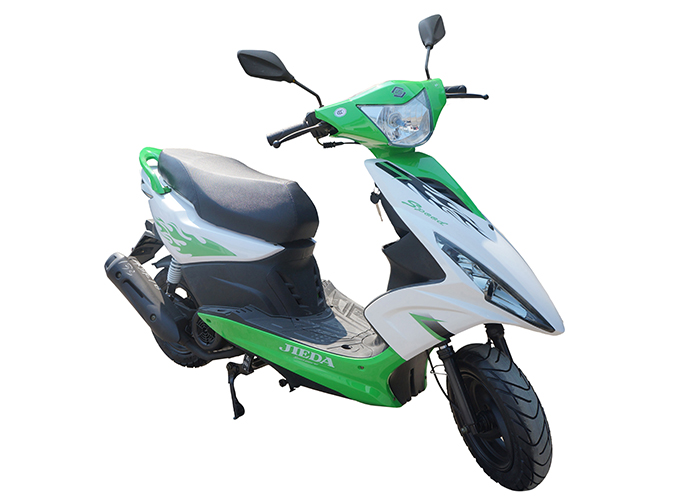

JT125T-13
Product Details
ENGINE | |
Engine Type | Single cylinder, forced air cooled, 4 stroke |
Bore and Stroke | 52.4 x 57.8 mm |
Displacement | 124.6 ml |
Compression Ratio | 9.2:1 |
Maximun Power | 5.2 kw / 7500r / min |
Maximun Torque | 7.5 N.m / 6000r / min |
Transmission | V-belt automatic |
Ignition | CDI |
Starting | Electric & kick starting |
Clutch | Automatic clutch |
CHASSIS / SUSPENSION / BRAKES | |
Front Suspension | Telescopic fork |
Rear Suspension | Double spring shock absorber |

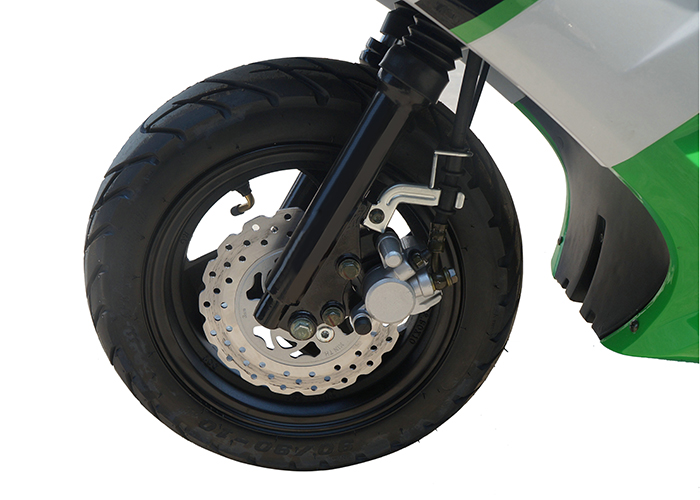

Front Brake | Single disc |
Rear Brake | Drum brake |
Front Tire | 3.50-10 |
Rear Tire | 3.50-10 |
DIMENSIONS | |
Height | 1200 mm |
Width | 800 mm |
Length | 2050 mm |
Wheel Base | 1450 mm |
WARRANTY | |
1 year or 6000km factory warranty |
