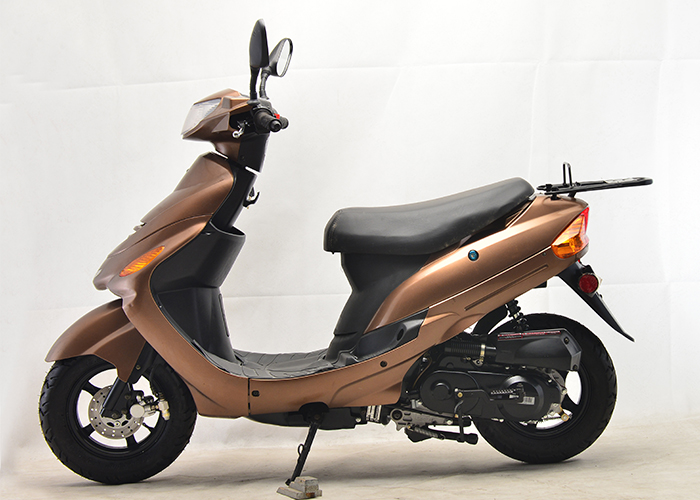

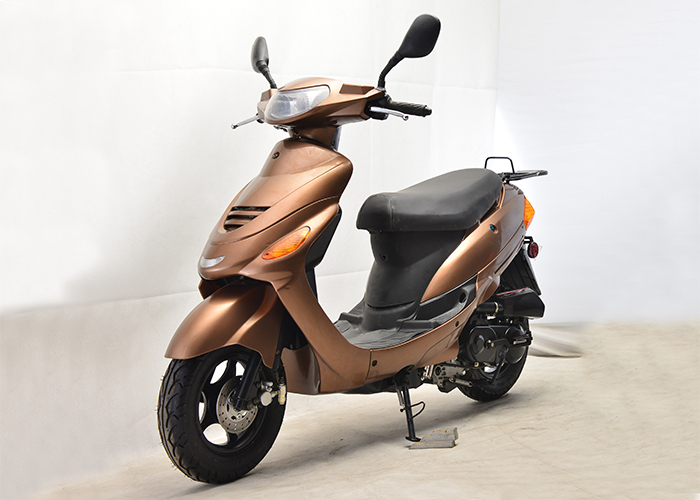

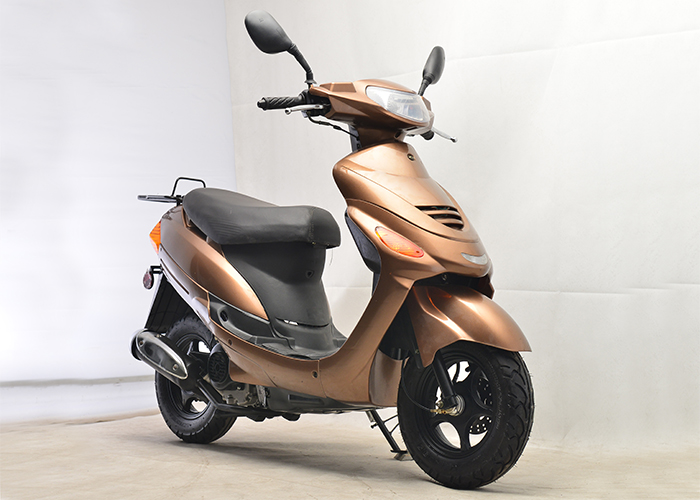

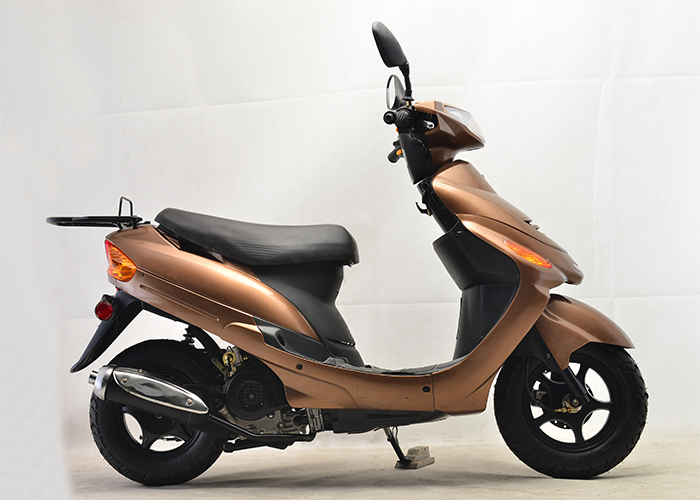

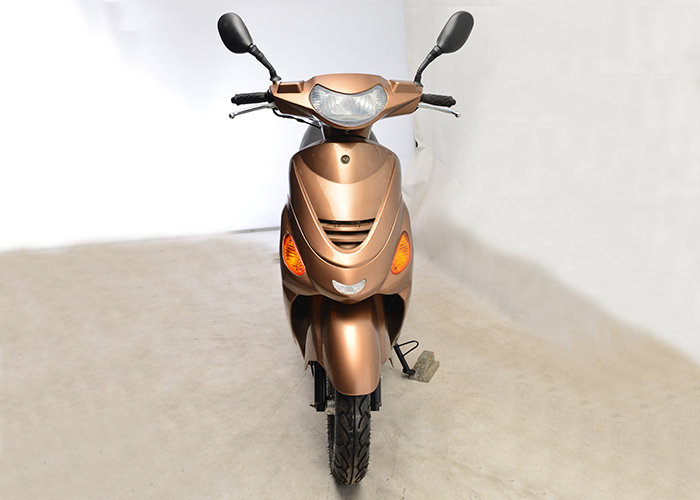

JT50QT-58B
Product Details
| ENGINE | |
| Engine Type | Single Cylinder, 4 Stroke, Forced Air Cooled |
| Bore and Stroke | 39 x 41.5 mm |
| Displacement | 49.5 ml |
| Compression Ratio | 10.5 : 1 |
| Maximun Power | 2.1 kw / 7500r / min |
| Maximun Torque | 3.1 N.m / 6500r / min |
| Transmission | V-belt automatic |
| Ignition | CDI |
| Starting | Electric & kick starting |
| Clutch | Automatic clutch |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Hydraulic damp |
| Rear Suspension | Spring shock absorber |
| Front Brake | Single disc |
| Rear Brake | Drum brake |
| Front Tire | 3.5-10 |
| Rear Tire | 3.5-10 |
| DIMENSIONS | |
| Height | 1075 mm |
| Width | 640 mm |
| Length | 1700 mm |
| Wheel Base | 1195 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
