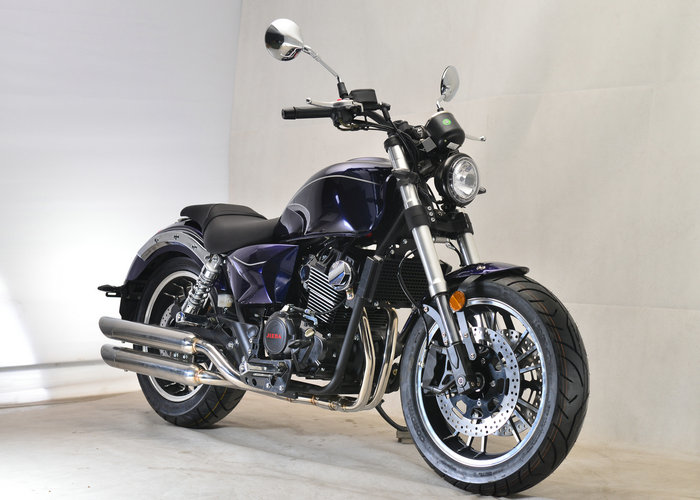

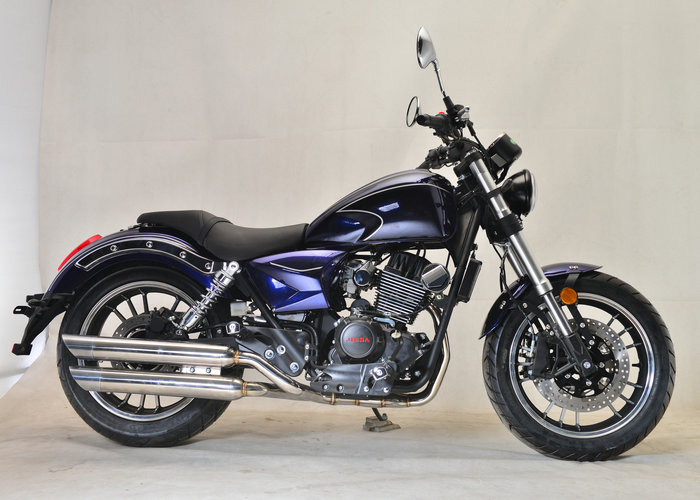

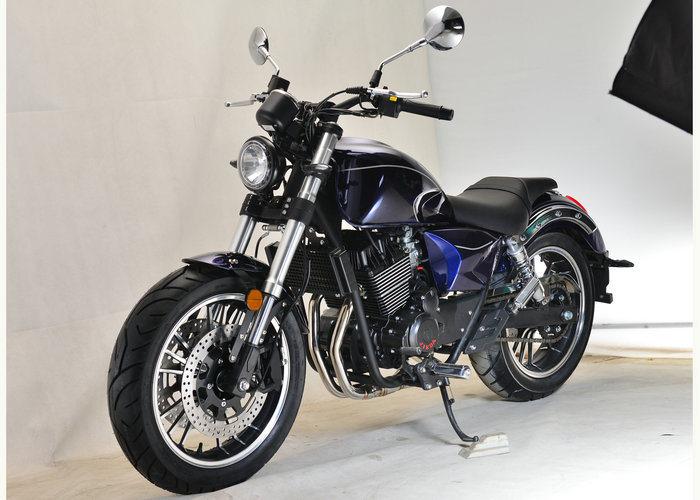

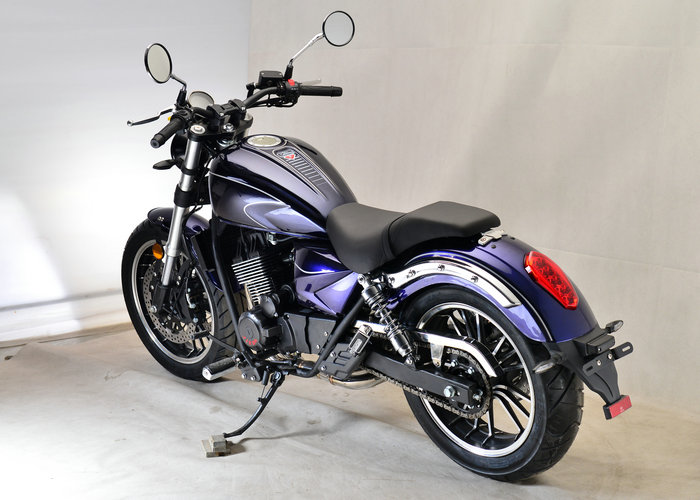

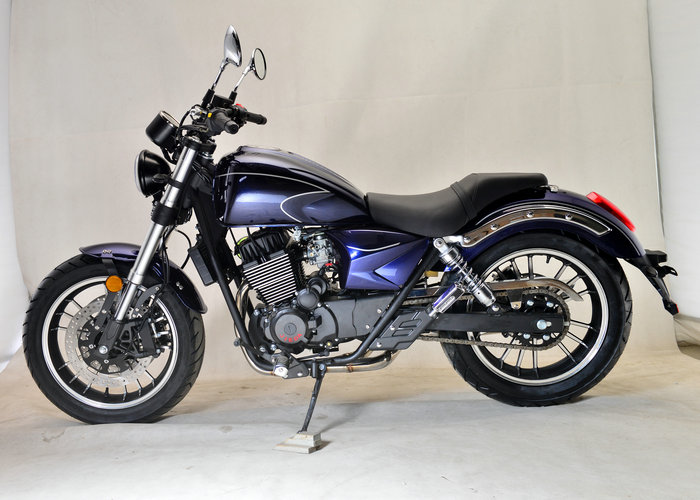

JT250-85
Product Details
| ENGINE | |
| Engine Type | TM250 engine, double cylinder, air cooled, balance shaft |
| Bore and Stroke | 55 x 53 mm |
| Displacement | 250 ml |
| Compression Ratio | 9.3:1 |
| Maximun Power | 12.5 Kw/ 8500 rpm |
| Maximun Torque | 16.5N.m / 6000 rpm |
| Transmission | 5 gear shifting |
| Ignition | CDI |
| Starting | Electric & kick starting |
| Clutch | Hand clutch |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Hydraulic damp |
| Rear Suspension | Double spring shock absorber |
| Front Brake | Single disc |
| Rear Brake | Single disc |
| Front Tire | 120/80-17 |
| Rear Tire | 150/70-17 |
| DIMENSIONS | |
| Height | 1300 mm |
| Width | 860 mm |
| Length | 2200 mm |
| Wheel Base | 1440 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
