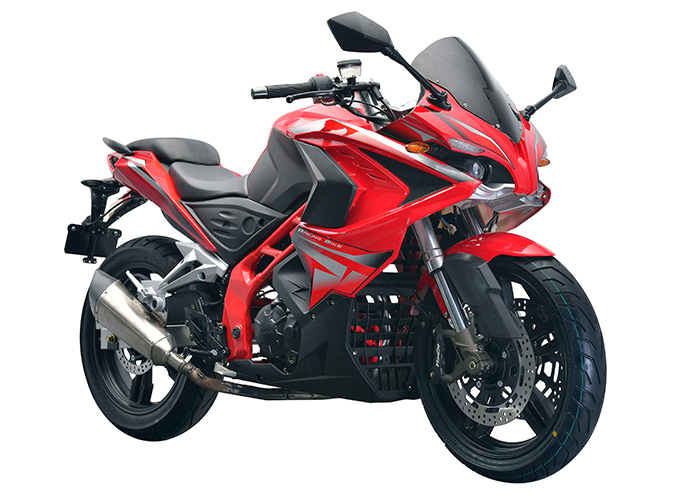

JT200-16
Product Details
| ENGINE | |
| Engine Type | CB engine, single cylinder, air cooled, 4 stroke, balance shaft |
| Bore and Stroke | 63.5 x 62 mm |
| Displacement | 196 ml |
| Compression Ratio | 8.6 : 1 |
| Maximun Power | 10.2 kw / 7500r / min |
| Maximun Torque | 14 N.m / 6000r / min |
| Transmission | 5 gear shifting |
| Ignition | CDI |
| Starting | Electric & kick starting |
| Clutch | Hand clutch |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Upside-down telescopic fork |
| Rear Suspension | Mid-ship single spring shock absorber |

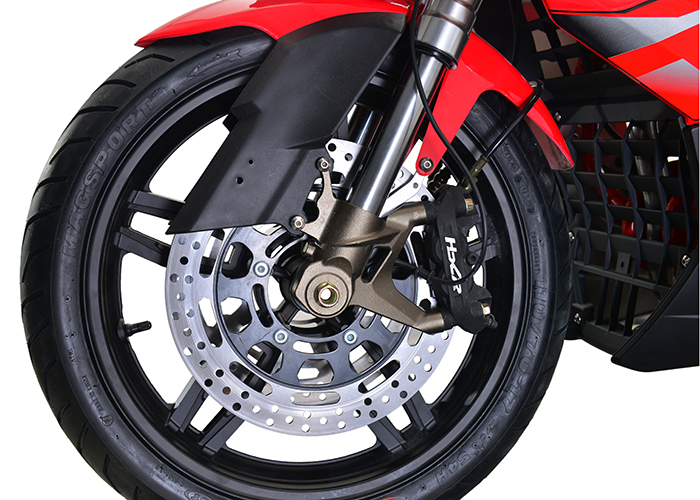

| Front Brake | Double disk |
| Rear Brake | Single disc |
| Front Tire | 110/70-17 |
| Rear Tire | 140/70-17 |
| DIMENSIONS | |
| Height | 1100 mm |
| Width | 570 mm |
| Length | 2030 mm |
| Wheel Base | 1320 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
