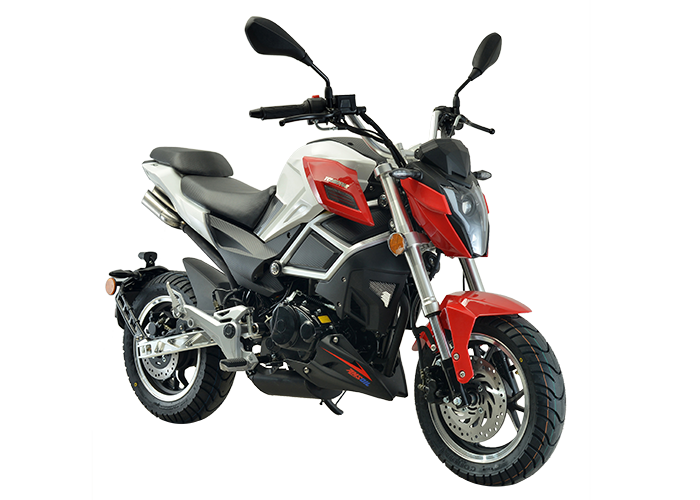

JT150-67
Product Details
| ENGINE | |
| Engine Type | CB150, Single Cylinder, 4 Stroke, Air Cooled |
| Bore and Stroke | 61 x 49.5 mm |
| Displacement | 144.6 ml |
| Compression Ratio | 9.4 : 1 |
| Maximun Power | 8.5 kw / 8500r / min |
| Maximun Torque | 9.5 N.m / 7500r / min |
| Transmission | Constant mesh, two stage transmission, 5 speed gearshift |
| Ignition | CDI |
| Starting | Electric |
| Clutch | Manual wet multi-plate |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Inverted shock absorber |
| Rear Suspension | Single spring shock absorber |
| Front Brake | Single disc |
| Rear Brake | Single disc |
| Front Tire | 120/70-12 |
| Rear Tire | 130/70-12 |
| DIMENSIONS | |
| Height | 1000 mm |
| Width | 955 mm |
| Length | 1743 mm |
| Wheel Base | 1234 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
